KEA offers a complete line filters for all of your wet and dry dust collection needs including panel filters and cartridge filters specifically designed for KEA dust collector air handling systems.

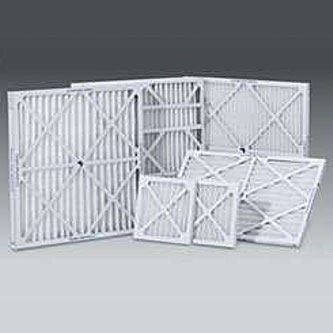

These inexpensive and disposable filters can be used as pre-filters and secondary filters. With a 35% ASHRAE rating, these filters efficiently remove larger particulate from the airstream. Prefilters measure 12”x12"x2" and 24"x24”x 2". Measurements are nominal. UL Classified

Click the item link below for a detailed product page:

• MODEL 495 FILTER: PLEATED PANEL - ASHRAE 30% (12" X 12" X 2")
• MODEL 500 FILTER: WIRE-RING PANEL - ASHRAE 45% (24" X 24" X 1")
• MODEL 507 FILTER: PLEATED PANEL - ASHRAE 35% (24" X 24" X 2")

USED IN KEA MODELS:
#495 is for a Wilton sander
#507 is for a KEA #1332 (office ceiling unit), and other KEA models

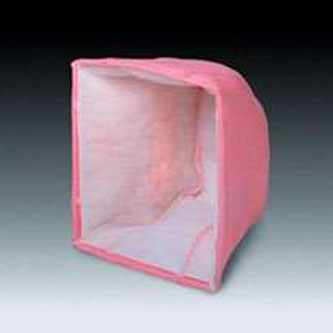

The cube filter is typically a secondary filter constructed of a 3-ply, multi-layer, high density synthetic fiber with a self-sealing covered edge. This edge prevents bypass of the particulate. The basket has a high dust holding capacity and lengthens the service life of the final filter. ASHRAE rating of 35%. Measurement is nominal. UL Class 2

Click the item link below for a detailed product page:

• MODEL 503 FILTER: SYNTHETIC FIBER CUBE - ASHRAE 45% (24" X 24" X 10")

USED IN KEA MODELS:
#1310 & 1320: ceiling industrial unit
#1332: ceiling office unit
#1367 & 1372: portable filtered units
#3055: central dust collector

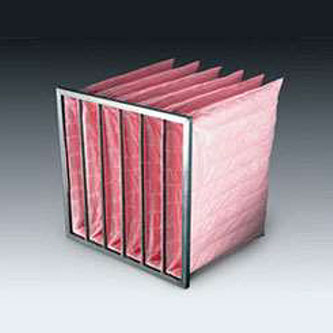

These VEE pocket filters are mounted on a 26 gauge galvanized steel header to provide rigid support and allow easier handling. Layered pockets of media provide more surface area for collection of particulate. Measurements are nominal. UL Classified

Click the item link below for a detailed product page:

• MODEL 517 FILTER: VEE BAG - ASHRAE 35% (24" X 24" X 22")
• MODEL 518 FILTER: VEE BAG - ASHRAE 95% (24" X 12" X 22")

USED IN KEA MODELS:
#517 is for KEA #1332
#518 is for KEA #1334
** Other ASHRAE rating available upon request

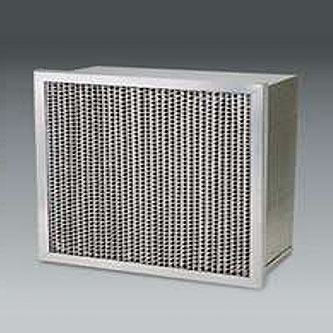

The Multi-Cell final filters are for dust collection systems requiring an ASHRAE rating from 65% to 95%. Measurements are nominal UL900 Class 1

Click the item link below for a detailed product page:

• MODEL 520 FILTER: MULTI CELL- ASHRAE 65% / SINGLE HEADER (24" X 24" X 12")
• MODEL 521 FILTER: MULTI CELL - ASHRAE 95% / SINGLE HEADER (24" X 24" X 12")
• MODEL 522 FILTER: MULTI CELL - ASHRAE 85% / SINGLE HEADER (24" X 24" X 12")

USED IN KEA MODELS:
1200 Series, 1300 Series, 3000 Series and 3900 Series

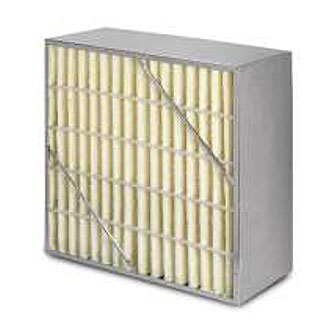

The Rigid Cell final filters are for dust collection systems requiring an ASHRAE rating from 65% to 95%. Measurements are nominal UL Classified

Click the item link below for a detailed product page:

• MODEL 520A FILTER: RIGID CELL - ASHRAE 65% / SINGLE HEADER (24" X24" X 12")
• MODEL 521A FILTER: RIGID CELL - ASHRAE 95% / SINGLE HEADER (24" X24" X 12")
• MODEL 522A FILTER: RIGID CELL - ASHRAE 85% / SINGLE HEADER (24" X24" X 12")

USED IN KEA MODELS:
In place of filter Model 520, 521, & 522
Also available in Fiberglass for high humidity applications

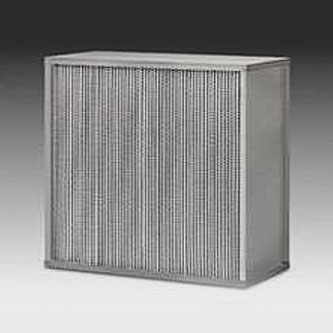

These final filters are constructed of an 18 gauge Galvanized steel frame with a continuous band of micro-fiberglass media pleated back and forth over corrugated aluminum separators. These are for use in a contaminant free environment, and are typically used in place of a multi cell filter. Measurements are exact. UL Classified to meet strict fire codes

Click the item link below for a detailed product page:

• FP.530 FILTER: 99.97% DOP H.E.P.A. CELL (24" X 24" X 12")

USED IN KEA MODELS:
Optional use in place of KEA model #521 filter

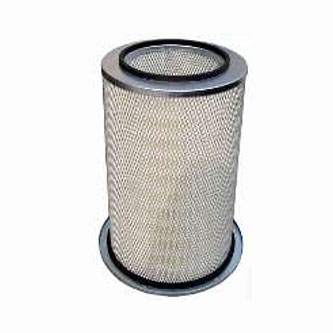

These cylindrical filters have a pleated cellulose/polyester blend media with excellent moisture resistance. The media is help in place with a retaining cage. The open design allows for better cleaning during the purge cycle, if applicable. The neoprene gasket ensures positive seal.

All Cartridge Filters have an ASHRAE rating of 95%

• Model 336 18X10 with cage
• Model 531 18x10: obsolete in 2017
• Model 533 26x12 with cage
• Model 535 32x12: obsolete in 2017
• Model 536 18x12*
• Model 537 32x12 with cage
  *Specify with (default) or without cage
  MEDIA TYPE: Wet-laid microfiber paper
  FRAME: 24- & 26-gauge galvanized steel
  RATINGS: ASHRAE 95%, MERV 14

USED IN KEA MODELS: 5000 Series, 5500 Series, & CyKLEAN 2900 Series (only applies to #336)

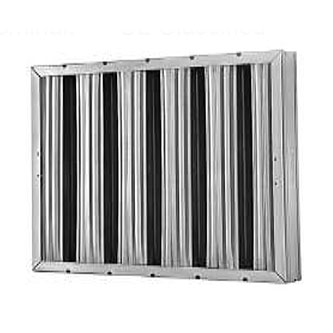

These filters include four layers of parallel baffles made completely of heavy 24 gauge Galvanized steel that will not shift or vibrate. Measurement is nominal. UL Classified

Click the item link below for a detailed product page:

• FP.550 FILTER: GALVANIZED 2 LAYER METAL (SLATTED) BAFFLE MIST FILTER (24" X 24" X 2') FOR WET DUST COLLECTORS
• FP.554 FILTER: GALVANIZED 2 LAYER METAL BAFFLE MIST FILTER (35" X 25" X 2")

USED IN KEA MODELS:
All KEA Wet Dust Collectors-4000 Series, 1367 & 1372 portable mist units and 1315 & 1325 stationary mist units

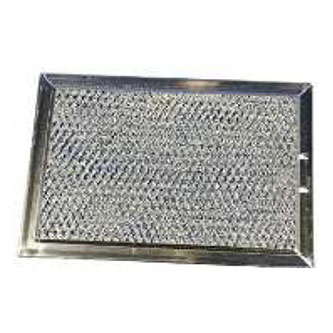

These filters are designed specifically for collection of oil mist or water droplets. 24 gauge galvanized metal frame surrounding a multi-layered pad of .0157 galvanized expanded media and screen

Click the item link below for a detailed product page:

• FP.551 FILTER: GALVANIZED MESH MIST ELIMINATOR FILTER (24" X 24" X 2') FOR WET DUST COLLECTORS

USED IN KEA MODELS:
All KEA Wet Dust Collectors-4000 Series, 1367 & 1372 portable mist units and 1315 & 1325 stationary mist units. Alternate to filter model 550.

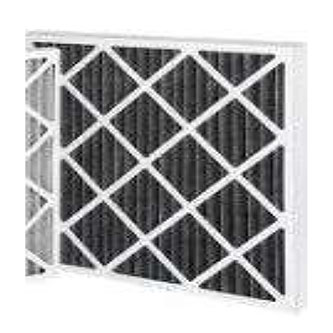

Effectively removes odors from the air with carbon. The activated carbon particles are encased in a honeycomb frame resulting in a low pressure drop.

Click the item link below for a detailed product page:

• FP.540 FILTER: 5 LBS. OF ACTIVATED CARBON (24" X 24" X 2")
• FP.544 FILTER: PLEATED CHARCOAL - ASHRAE 35% (24" X 12" X 2")

USED IN KEA MODELS:
Can be used in place of pleated panel filters for the removal of odors

For more information give us a call at 800-233-6530
or e-mail us at [email protected]
